Lockin’, the wondrous knife, is here

Hi Alberto, please introduce yourself to the readers of all4shooters...

I was born in 1989 in Merate in the province of Lecco in Italy. I am the co-founder of an innovative technology start-up (Repiks Technologies), I play and teach the trumpet and I am passionate about handicrafts, particularly knives, signing my work as “Garbino”.

How did you come to be a knife maker?

I have always been very creative and good with my hands ever since I was a small boy. I have always enjoyed the support of my dad, a mechanical designer, my mum, a graphic designer, my grandfather and uncle who are both engineers and many of my musical, artistic and technically-minded relatives. When I was about 18 years old, I met Master Knife Maker Claudio Riboni, who introduced me to the world of artistic knives.

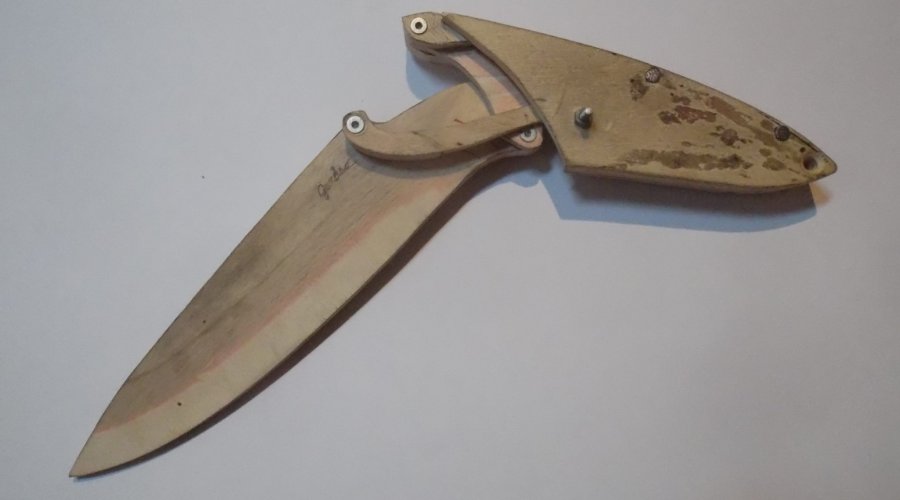

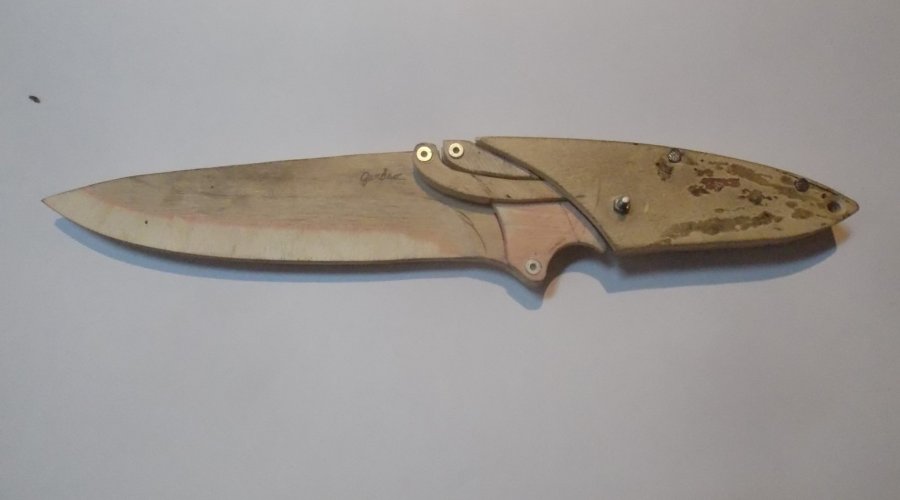

Gariboldi's knife wooden model, opened — Wooden model of Alberto Gariboldi's pivot sliding knife, showing the operating principle.

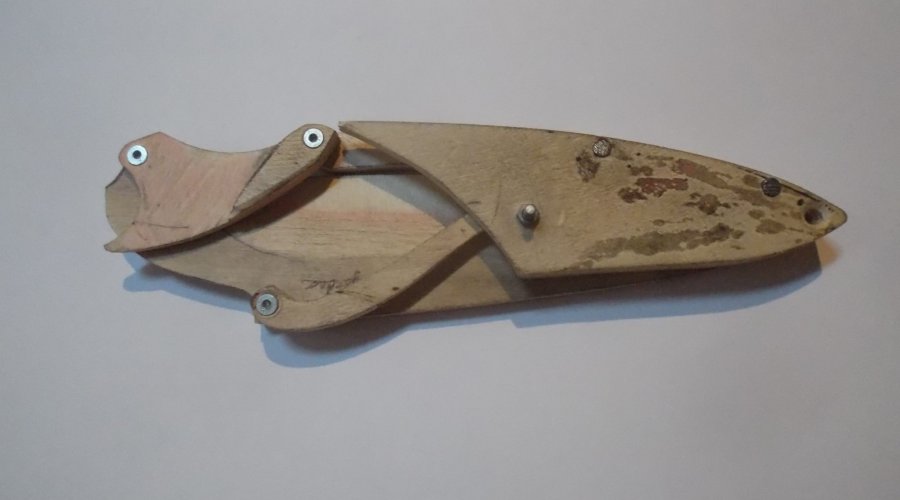

Gariboldi's knife wooden model — Wooden model of Alberto Gariboldi's pivot sliding knife, showing the operating principle.

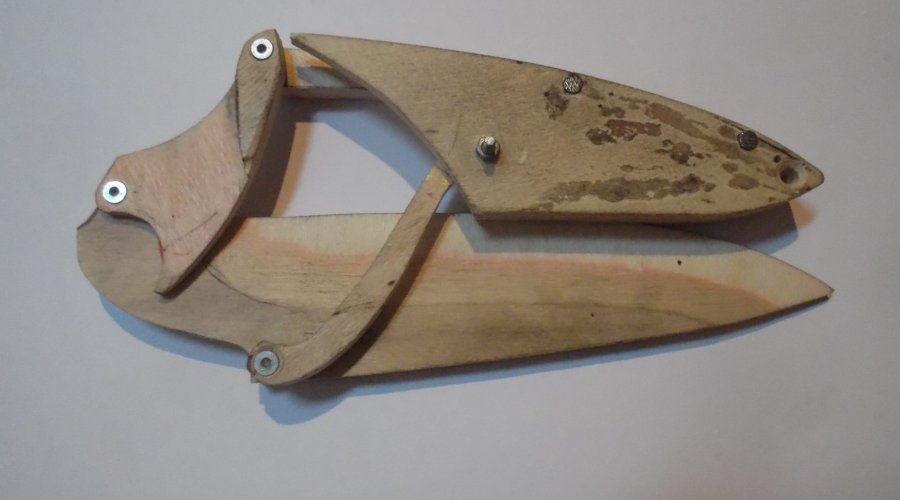

Gariboldi's knife wooden model, closed — Wooden model of Alberto Gariboldi's pivot sliding knife, showing the operating principle.

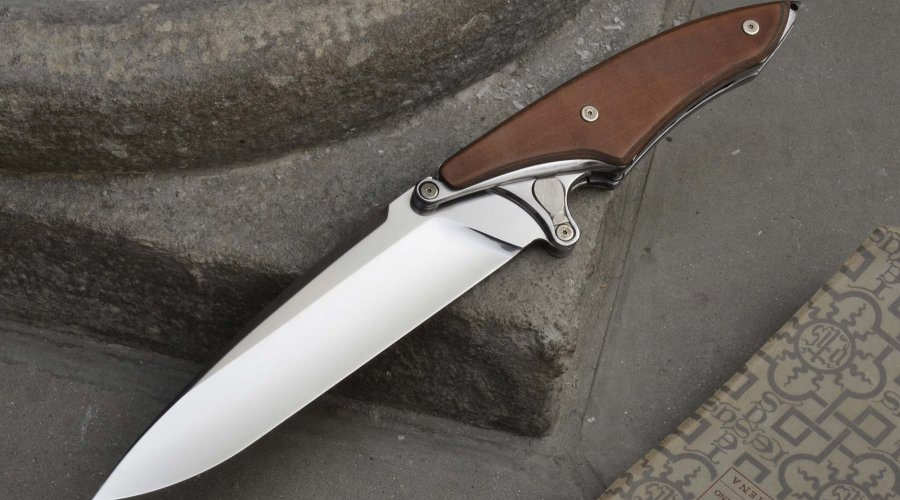

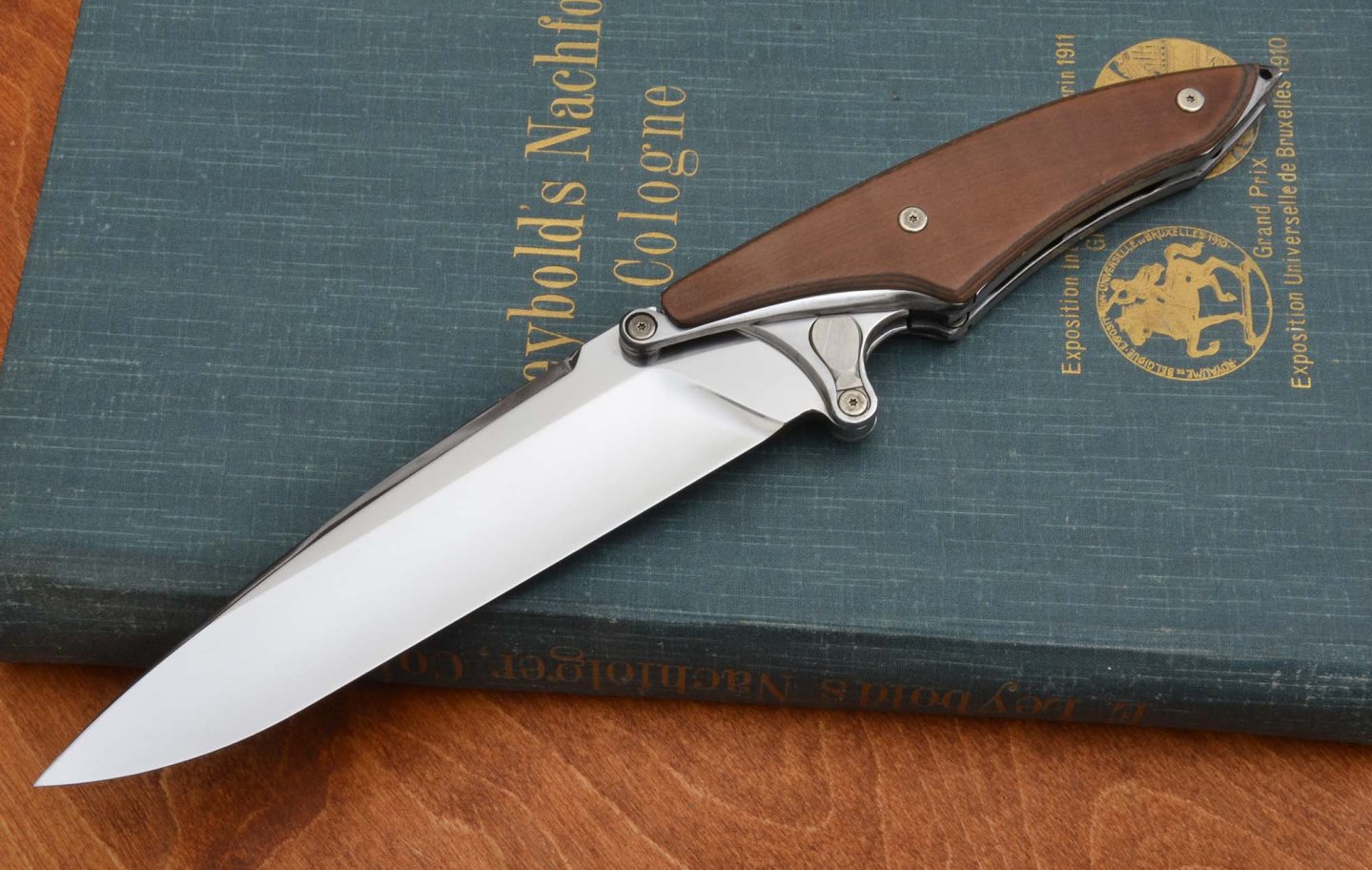

Lockin' knife prototype, opened — The Lockin’ knife when open has a highly original look. This is the first final model to be produced.

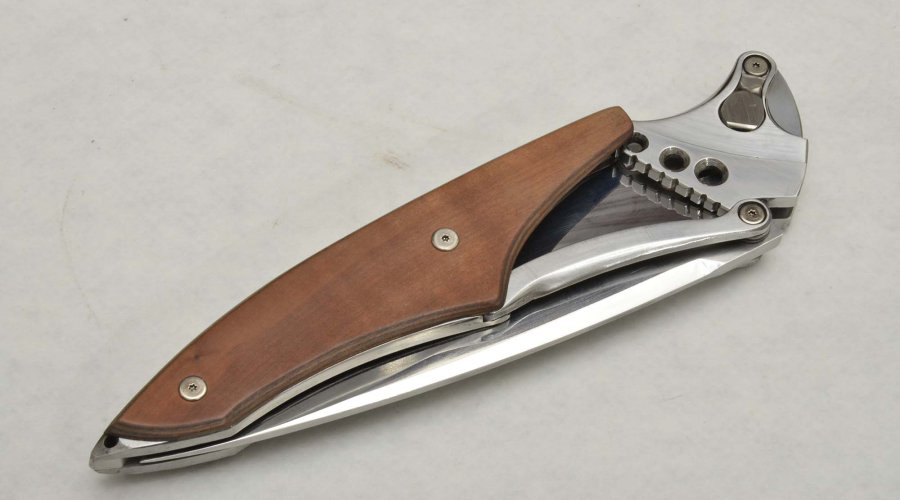

Lockin' knife prototype, folded — The Lockin' knife closed. With a bit of practice, the knife can be opened with just one hand.

Where did you get your inspiration for the pivot sliding knife?

I was in my lab one evening, it was very late and I was struggling with a small folding knife that did not want to work properly. In a moment of reflection, I realised that, to my knowledge, the blade of a folding knife has to be shorter than the handle, and this did not sit well with me. It was then that I took a piece of paper the same size as the knife, drew two dots, inserted two pins and attached two more pieces of paper. This was the start of a two-and-a-half-year journey that led to the Lockin’ pivot sliding knife.

Safety of the knife prototype Lockin' — G.B.
There is a titanium button that acts as a safety on each side of the head. Both buttons must be pressed simultaneously to open the knife.

Lockin' knife prototype in its leather sheath — G.B.
View of the knife's unique shape. A special leather sheath has also been designed.

How did you end up winning the Mercedes 'Artigenio' award?

It all began with a few sketches and a paper design, a wooden model, an initial virtual projection and a 3D home-printed model in blue plastic. After a while the project came to a halt due to its apparent complexity. One year later, the 'Artigenio' award, a competition for “makers with plans in the pipeline”, was advertised on social media. I decided to enter with the blue plastic knife and a few months later I won a considerable amount of money (10 thousand euros) to spend on developing my project.
I then put the idea to Repiks, my start-up that was specifically founded to develop and patent technologically innovative products. Thanks to the 'Artigenio' prize money and Repiks' engineering and communication expertise, the project saw an instant surge in quality.

The executive design phase then began, followed by patenting the invention, a precision 3D-printed prototype, an initial marketing analysis and the establishment of basic communication.

The production of the first and only metal prototype took just under six months of work.

Bottom view of the Lockin' knife prototype — G.B.
Bottom view showing the unique riveted folder that allows the handle to be extended.

Prototype Lockin' knife half opened — G.B.
The pivot sliding Lockin' knife half opened.

Can you explain how it works?

This knife, in which the various components form an articulated quadrilateral, opens and closes by means of a pivoting sliding motion. The handle breaks up as the knife closes, expanding to cover the entire length of the fixed blade (the cutting edge is 180 mm long).
The handle reforms when the knife is opened, shrinking to around 130 mm, making the knife less cumbersome to use than a folding knife of similar size. The contact surfaces between the different components of the five-pin, open-configuration system are all different, which enhance the knife's strength and robustness. The double safety means that the knife can be used, opened and closed with either hand.

Which materials did you use for the pivot sliding knife?

The prototype knife is 320 mm long when open, 200 mm long when closed and weighs 407 g. It is made almost entirely of 440C stainless steel and can be completely disassembled into its 47 components, with M3 burnished hardened steel or stainless steel screws.

The two folders are made of C80 steel. The two safety buttons are made of 1.2-mm 6Al4V titanium, while the bolsters are made of multi-layered cherry wood and carbon fibre. The knife comes with a prototype leather sheath.

From left to right: Alberto Gariboldi forging together with master knife makers Flavio Poratelli, Giuseppe Pala and Claudio Riboni.

When will the final version be ready and how much will it cost?

Unfortunately, I am still not in a position to talk about timings and costs but both me and my two partners at Repiks are working to bring two versions of the knife into production at an affordable price as soon as possible.
The first will be a limited edition version of just 100 sequentially numbered knives. The mechanical elements shall be made completely of high-performance titanium and the bolsters of high-performance technopolymers. The mechanical elements of the following series shall be made of steel and completely configurable by the customer. It will also be possible to produce customised knives upon request.

For information please visit www.repiks.it and Facebook page www.facebook.com/OfficinaArtisticaGarbino
