This photo guide shows you how to completely disassembly the semi-automatic Glock 17 handgun
Bruno Ardovini
Glock 17, complete disassembly
Bruno Ardovini

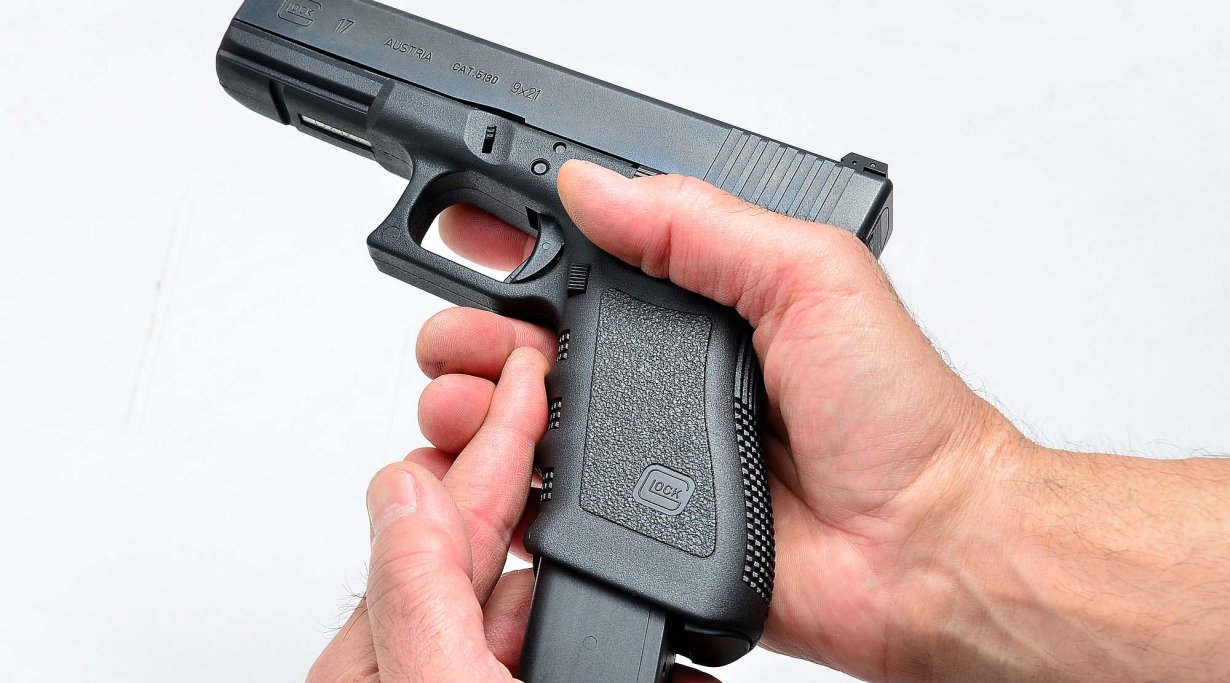

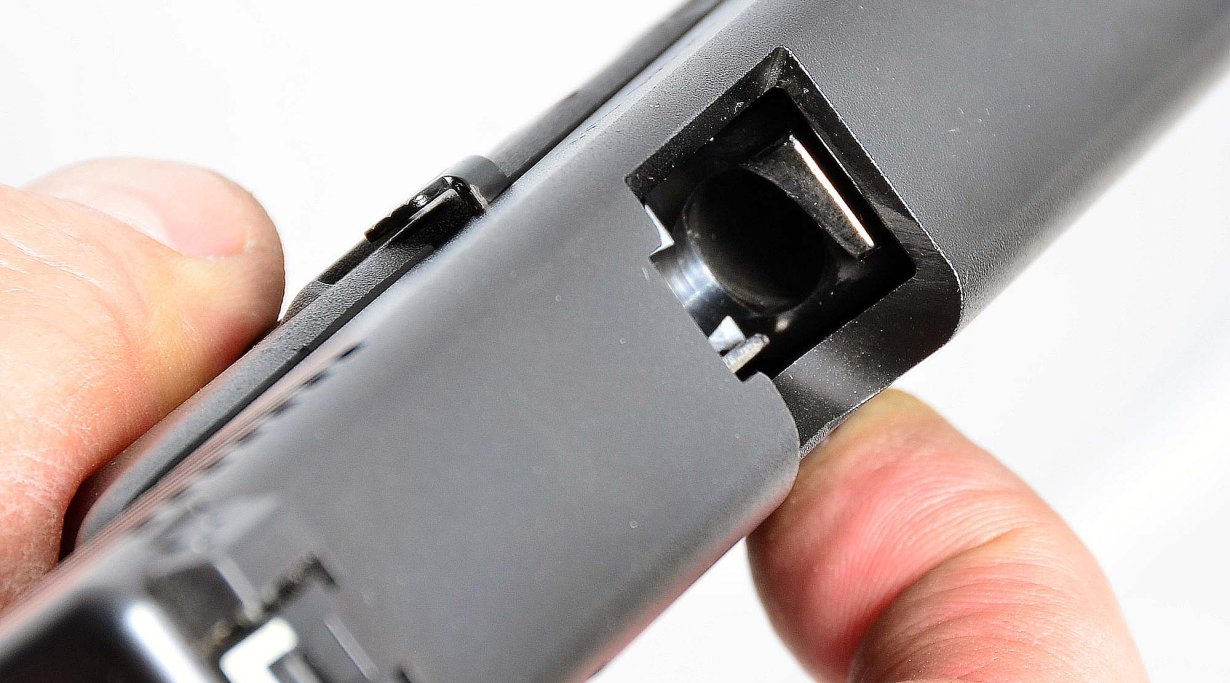

The visual control of the cartridge chamber is very important in order to make sure if the gun is loaded
Bruno Ardovini

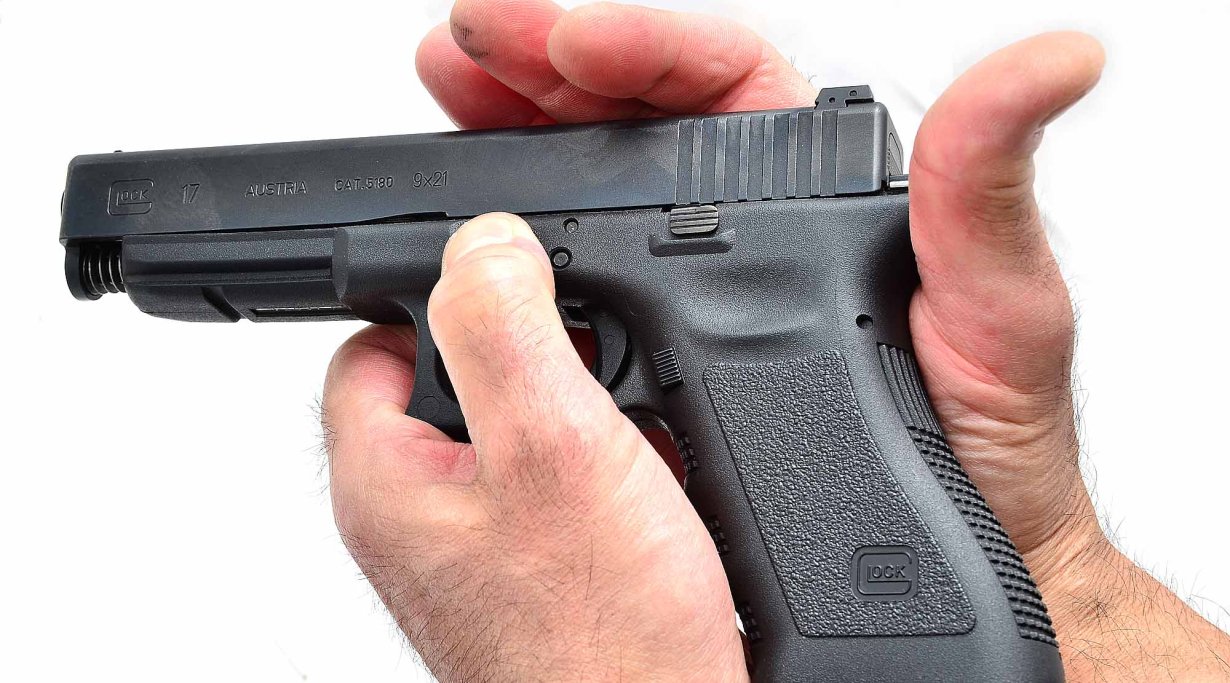

The slide is taken out by pushing the takedown latch downwards
Bruno Ardovini

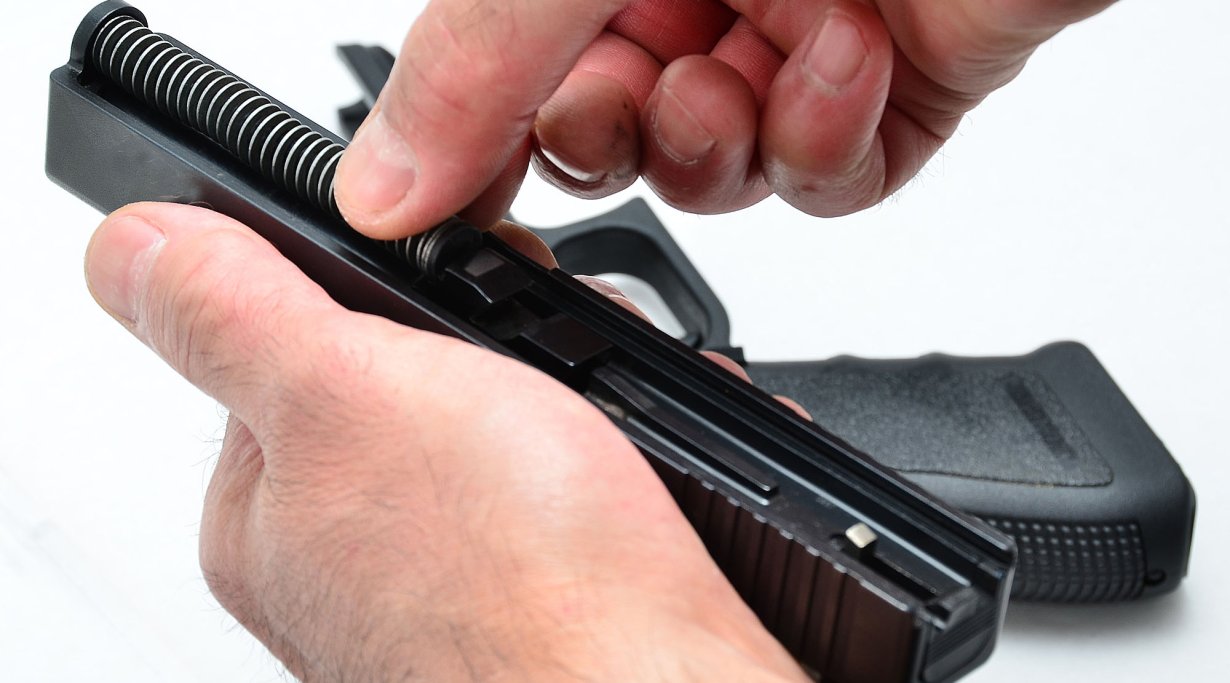

Take out the recoil bar with the captivated spring
Bruno Ardovini

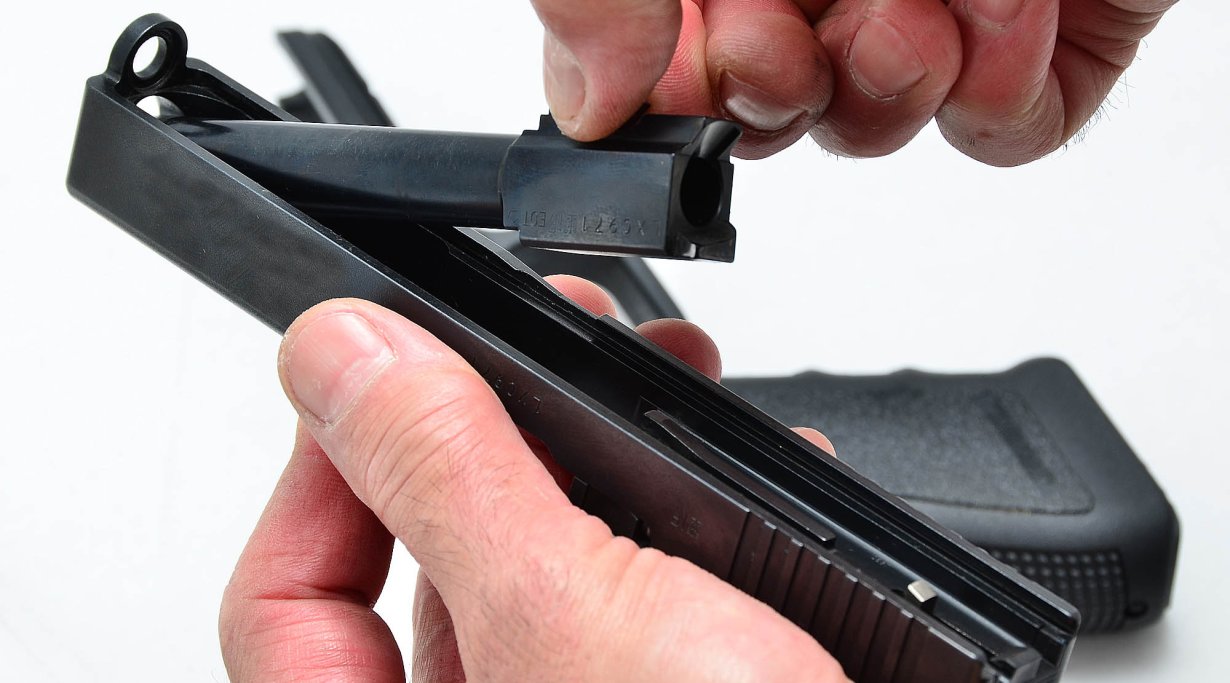

The barrel can now be separated from the slide
Bruno Ardovini

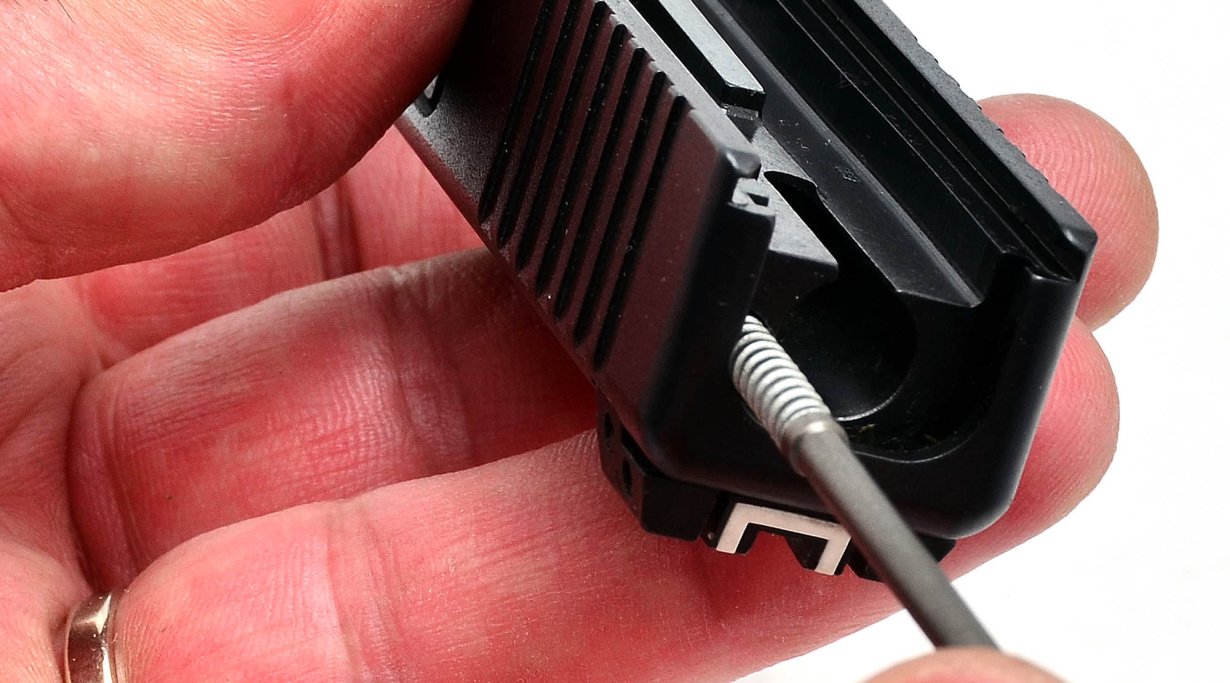

Push the firing pin in order to set the rear slide-cover plate free
Bruno Ardovini

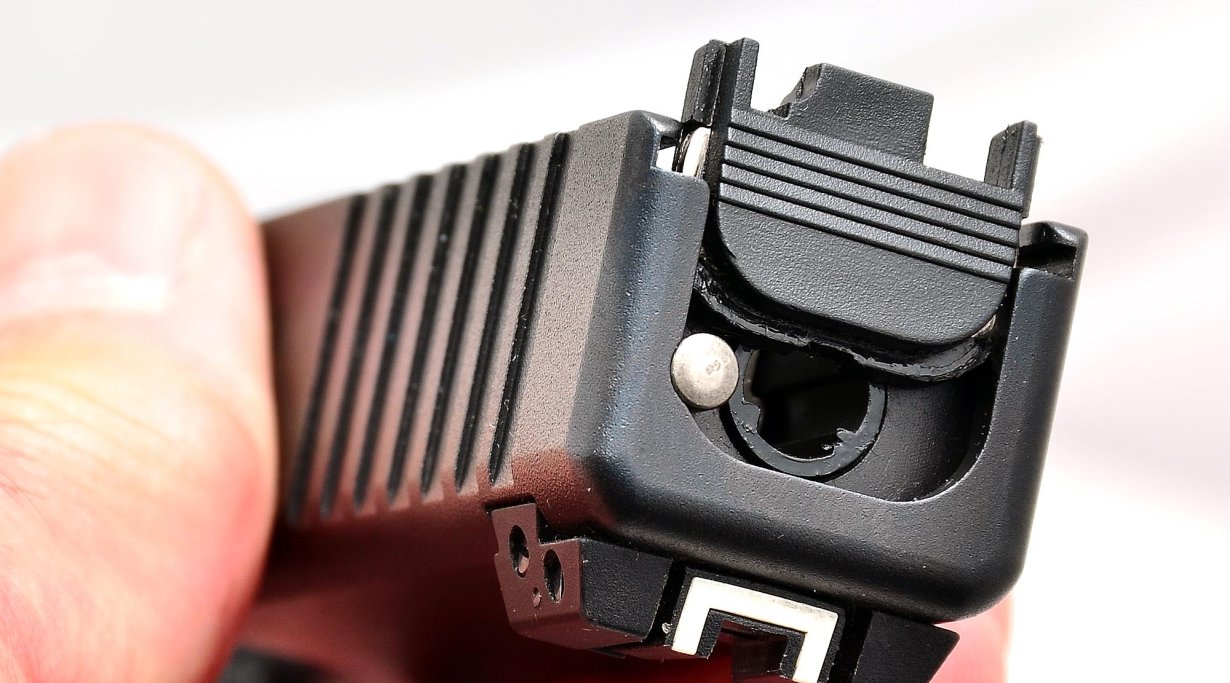

Once the plate is out, you can see the back side of the striker and the pin which holds the extractor in place
Bruno Ardovini

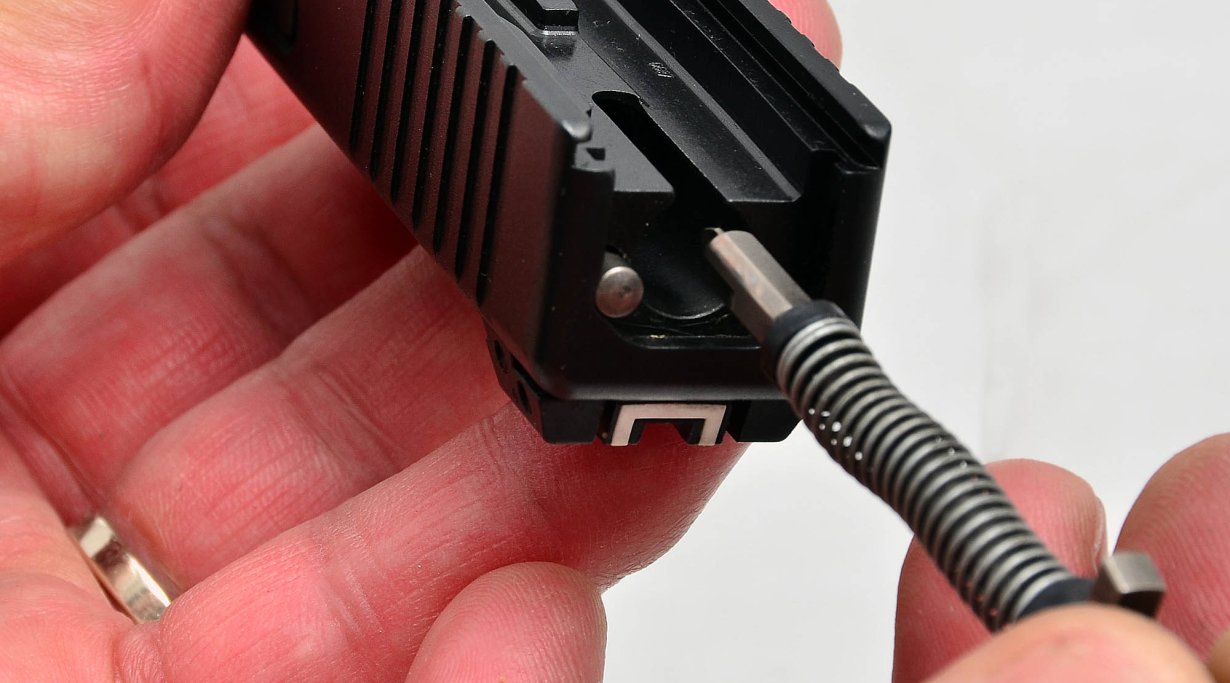

Take the striker out
Bruno Ardovini
Take out the pin that keeps the extractor in place
Bruno Ardovini

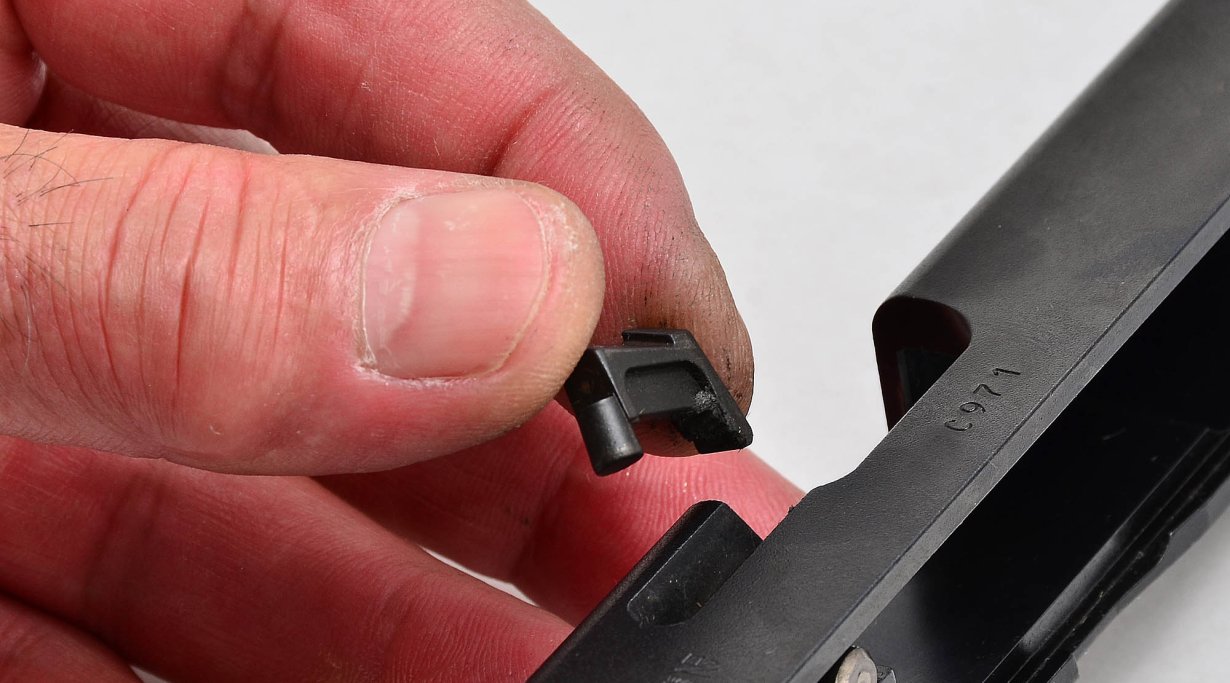

You can now remove the extractor
Bruno Ardovini
The small barrel of the firing pin safety can be removed together with its spring
Bruno Ardovini

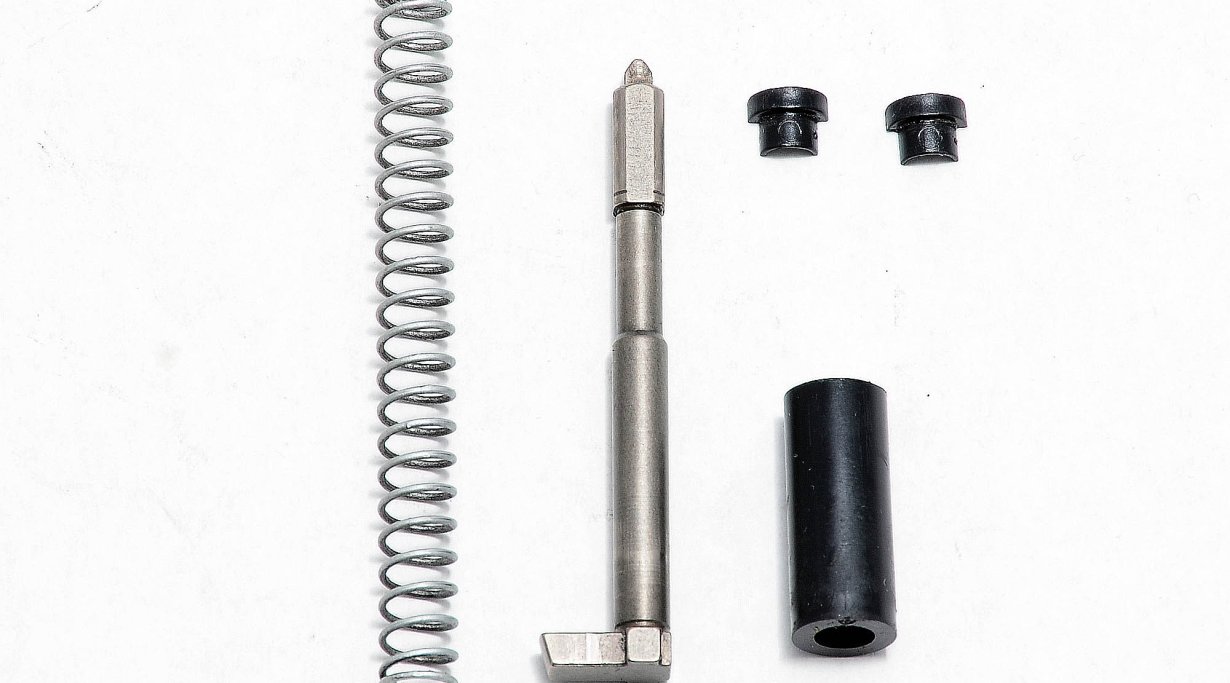

The firing pin is dismantled in its components: striker, the spring and spring cups
Bruno Ardovini

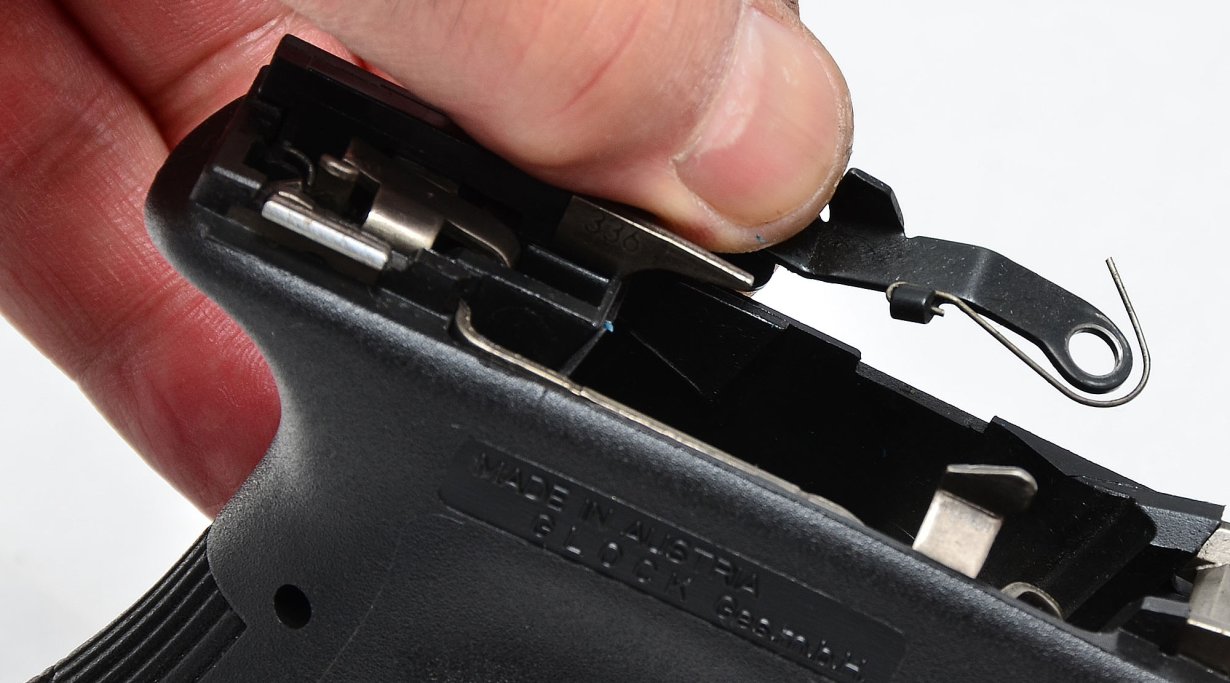

Once you take out the pins, you can remove the slide stop lever. This part is sometimes replaced with larger models
Bruno Ardovini

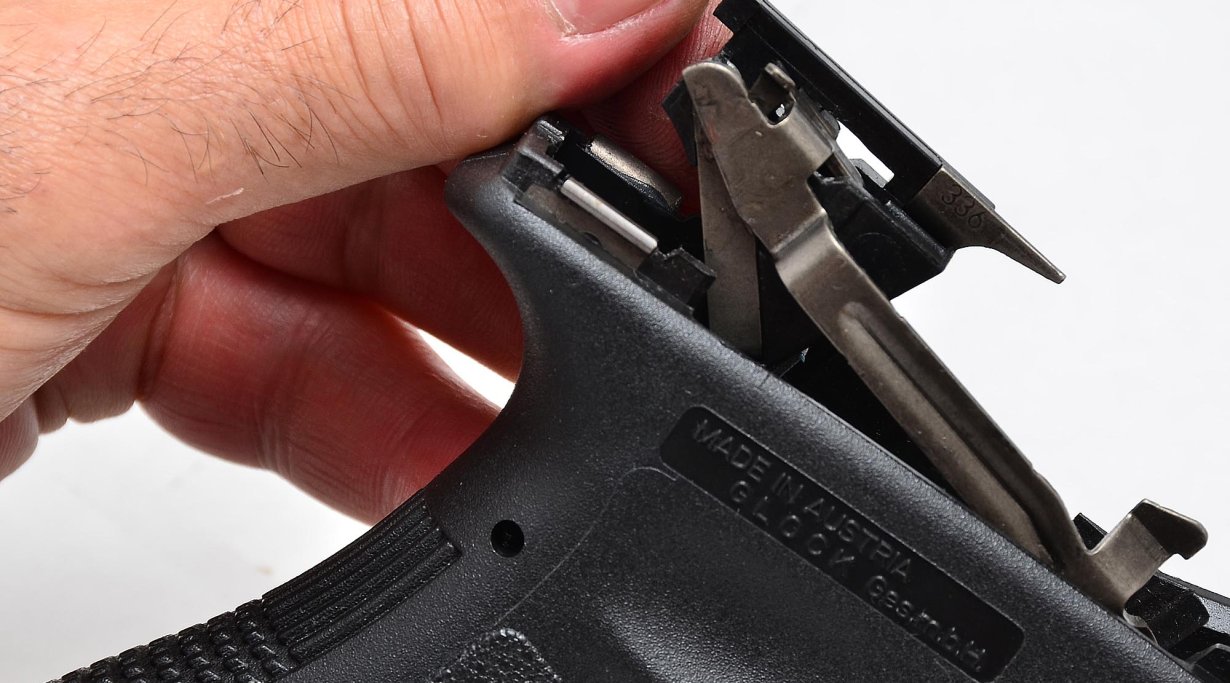

The trigger sub frame can be extracted
Bruno Ardovini

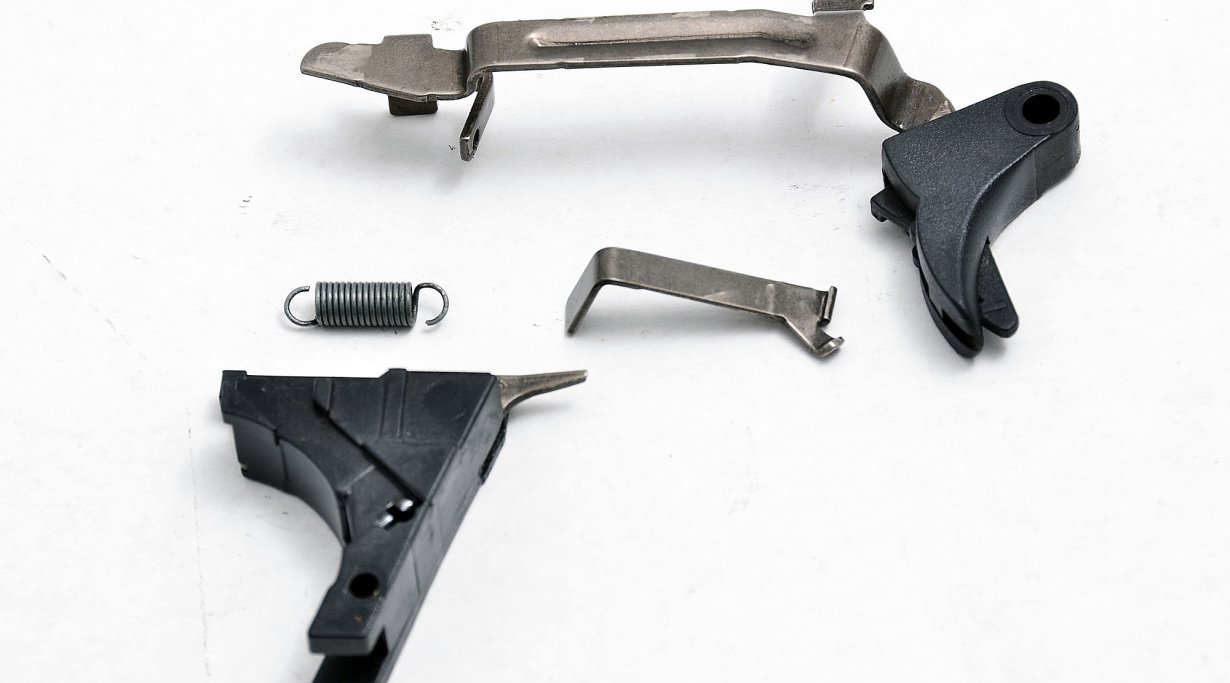

The small spring should be periodically replaced. The connector replacement is usually the first thing you do to reduce the trigger pull weight
Bruno Ardovini

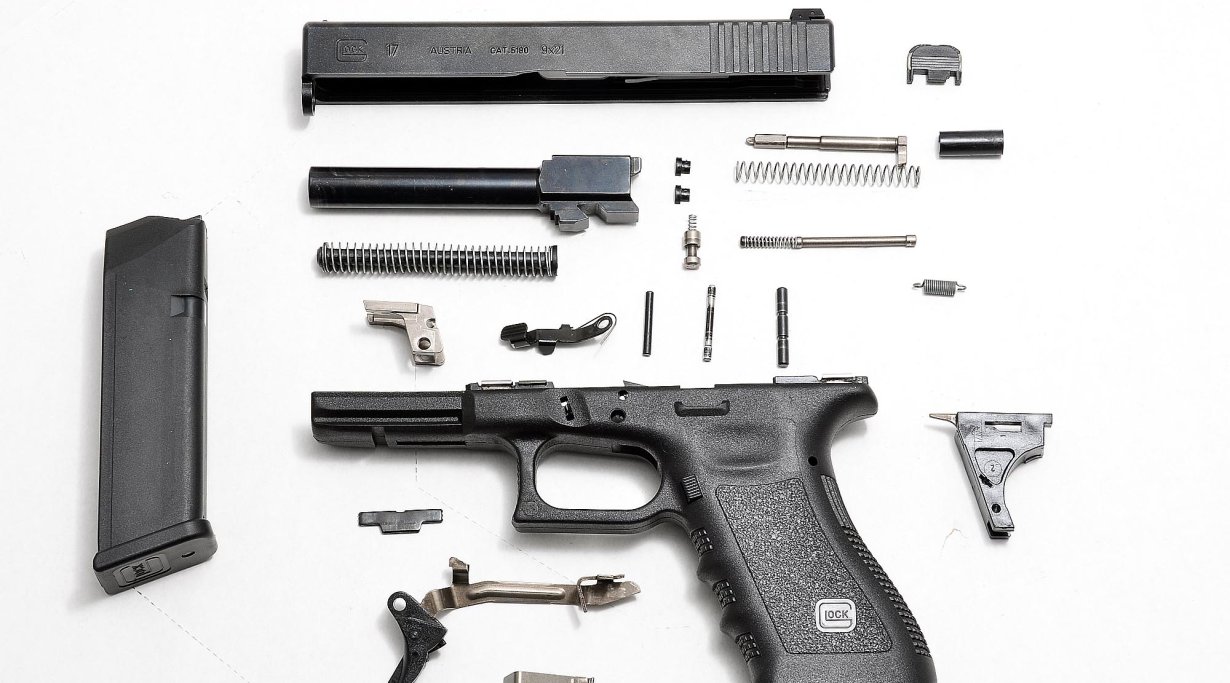

The pistol is disassembled in its parts
